Hafele

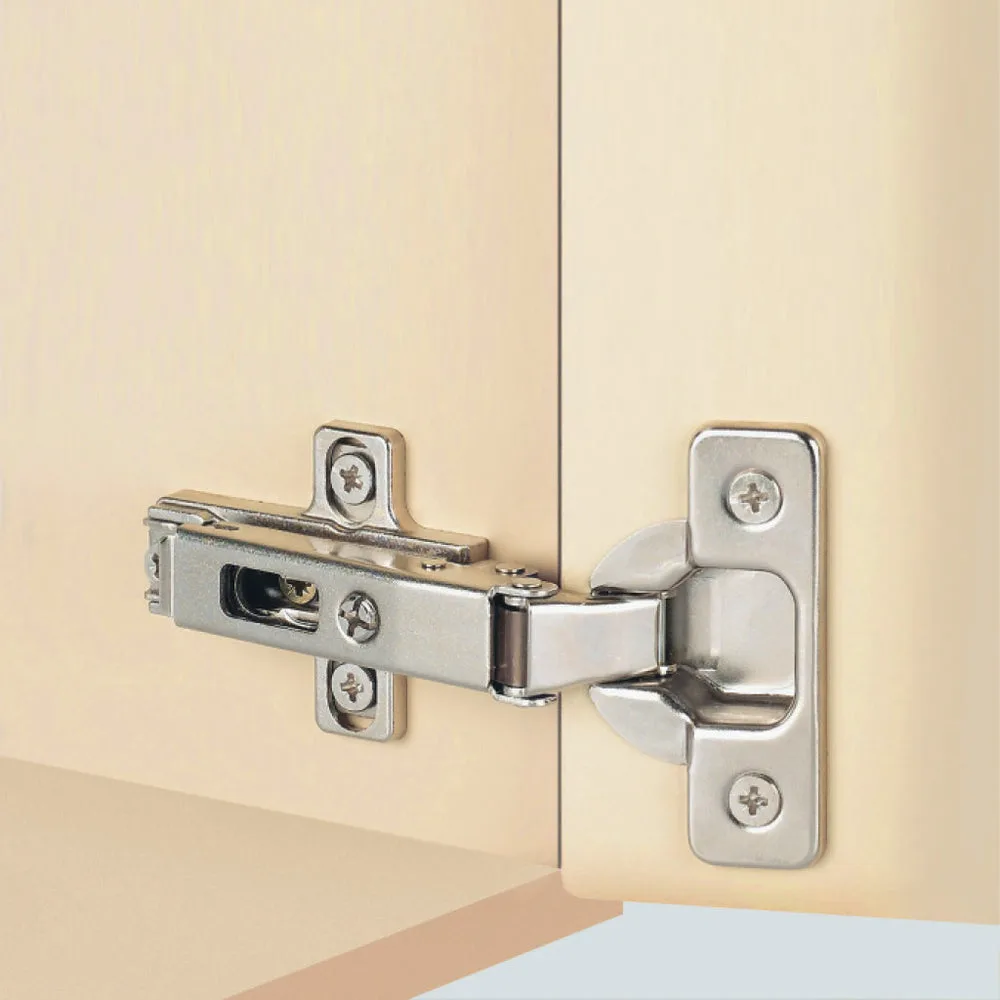

Hafele 110º Series 200 Hinges
$3.02 AUD
Price includes GST. Shipped from Moorabbin. Delivery quoted with your order.
Version
Specifications
- Product code
- 329.17.600
- Type
- Hardware
Details
| Version: | For door thickness up to 26 mm |
| Material: | Steel |
| Finish: | Nickel-plated |
| Min. Drilling depth: | 11 mm |
| Adjusting facility: | Lateral adjustment from -1.5 to +4.5 mm Height adjustment from -2 to +2 mm |
| Fixing door to carcase: | Sliding on with Salice A mounting plates or quick fixing with Salice SM mounting plates |

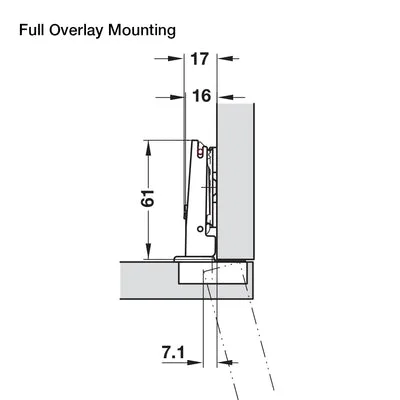

| Model: | Full Overlay Mounting Half Overlay Mounting |
| Cup fixing: | Screw fixing |
| Drilling pattern: | 48/6 |
| Note: | Order Mounting Plate Separately - 329.68.003 |
| Packing: | 1 piece |
