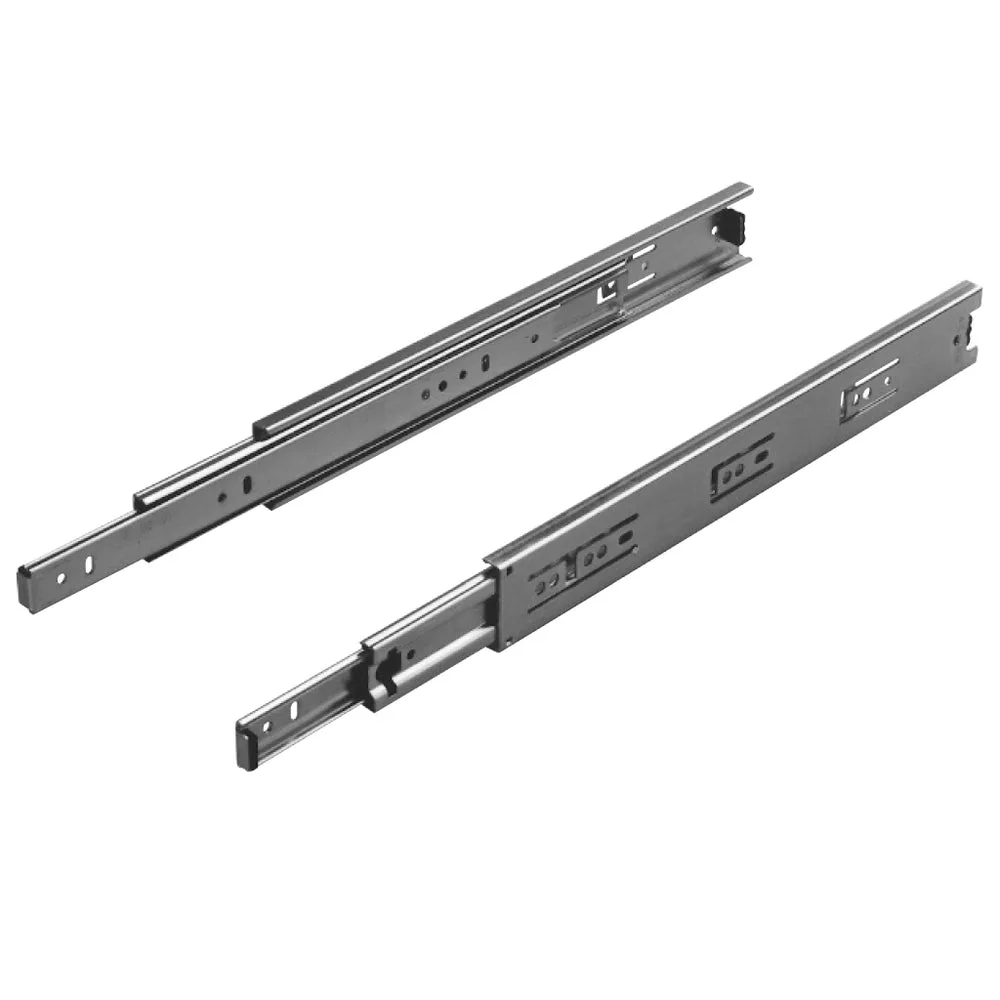

Ball Bearing Drawer Runner
$8.93 AUD
Price includes GST. Shipped from Moorabbin. Delivery quoted with your order.
Installed Length
Specifications
- Product code
- 422.58.325
- Type
- Hardware
Details

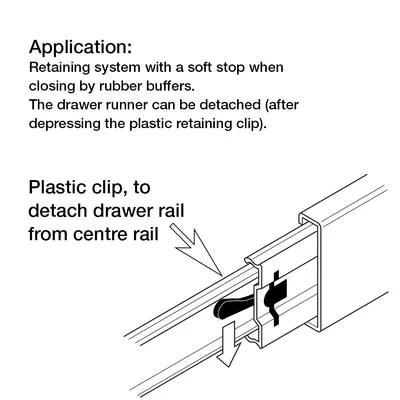

| Application: | Retaining system with a soft stop when closing by rubber buffers. The drawer runner can be detached (after depressing the plastic retaining clip) |
| Material: | Steel |
| Finish: | Black Galvanised |
| Guided by: | 2 ball cages |
| Fitting to the carcase: | Screw fixing |
| Fitting to drawer: | Screw fixing, side mounted |
| Packing: | 1 pair |
| Installed length | Extended length | Weight capacity | Art. No. |
| 250 mm | 250 mm | 30 kg | 422.58.325 |
| 300 mm | 300 mm | 35 kg | 422.58.330 |
| 350 mm | 350 mm | 40 kg | 422.58.335 |
| 400 mm | 400 mm | 45 kg | 422.58.340 |
| 450 mm | 450 mm | 45 kg | 422.58.345 |
| 500 mm | 500 mm | 45 kg | 422.58.350 |
| 550 mm | 550 mm | 45 kg | 422.58.355 |
| 600 mm | 600 mm | 40 kg | 422.58.360 |
| 650 mm | 650 mm | 40 kg | 422.58.365 |
