TITUS Tekform

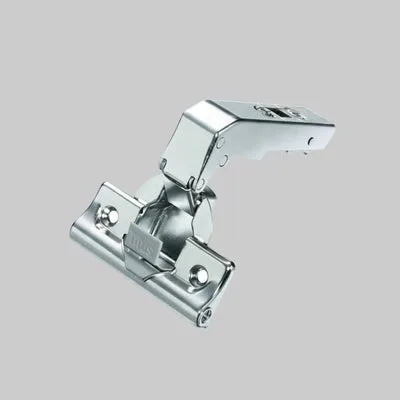

Titus Glissando 110/90° Hinge, 17mm Overlay | MODUVO AU
$7.00 AUD
Price includes GST. Shipped from Moorabbin. Delivery quoted with your order.
Cup Type
Interaxis (mm)
Specifications
- Product code
- 364869716466-79027173
- Type
- Drawer Slides
Details
- Angled (°): 90
- Cranking (mm): 17
- Depth adjustment: +/-2.5mm
- Hinge cup diameter: 35 mm
- Height adjustment: +2 / -2 mm
- Mounting: 3Way 'snap-on'
- Material: Steel & Zinc
- Side adjustment: +3/-1mm
- Opening Angle: 110°/90
