Home / Hinges and Mounting Plates / Titus Tekform Glissando 110° Soft-Close Hinge, Inset 17mm
Drag to orbit · scroll to zoom
Drawn to the cut dimensions. Finish colours on screen are indicative only — a physical sample is the only true match.
TITUS Tekform

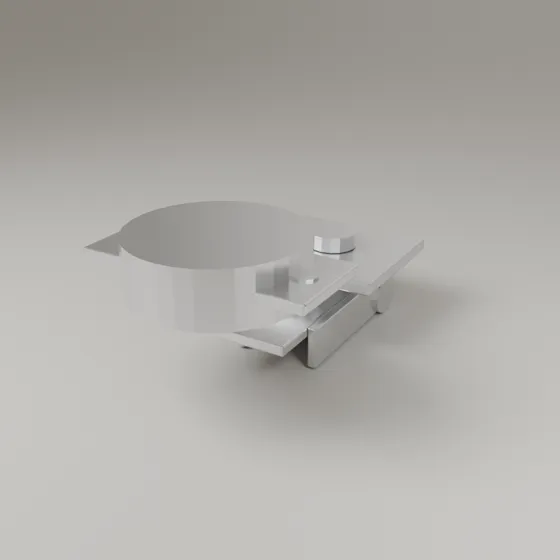

Titus Tekform Glissando 110° Soft-Close Hinge, Inset 17mm
$6.00 AUD
Price includes GST. Shipped from Moorabbin. Delivery quoted with your order.
Cup Type
Interaxis (mm)
Specifications
- Product code
- 701.0DT0.054.00
- Type
- Drawer Slides
Details
- Cranking (mm): 17
- Depth adjustment: +4/-1mm
- Hinge cup diameter: 35 mm
- Height adjustment: +2 / -2 mm
- Mounting: 3Way 'snap-on'
- Material: Steel
- Side adjustment: +3/-1mm
- Opening angle (°): 110
